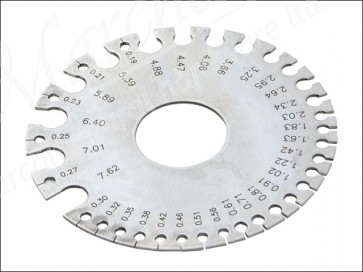

Wire Gauge - Metric / Imperial

Made from heavy gauge stainless steel, and used for measuring the gauges of steel wire and hot and cold rolled sheet steel. Metric dimensions are recorded on one side and SWG (Standard Wire Gauge) marking on the other.

SWG    -   mm  -   inches
  36     -   0.19  -  0.0076
  35     -   0.21  -  0.0084
  34     -   0.23  -  0.0092
  33     -   0.25  -  0.01
  32     -   0.27  -  0.0108
  31     -   0.30  -  0.0116
  30     -   0.32  -  0.0124
  29     -   0.35  -  0.0136
  28     -   0.38  -  0.0148
  27     -   0.42  -  0.0164
  26     -   0.46  -  0.018
  25     -   0.51  -  0.02
  24     -   0.56  -  0.022
  23     -   0.61  -  0.024
  22     -   0.71  -  0.028
  21     -   0.81  -  0.032
  20     -   0.91  -  0.036
  19     -   1.02  -  0.04
  18     -   1.22  -  0.048
  17     -   1.42  -  0.056
  16     -   1.63  -  0.064
  15     -   1.83  -  0.072
  14     -   2.03  -  0.08
  13     -   2.34  -  0.092
  12     -   2.64  -  0.104
  11     -   2.95  -  0.116
