Ts83 Overhead Door Closer Uni En 2-5 Sil

• Specification:

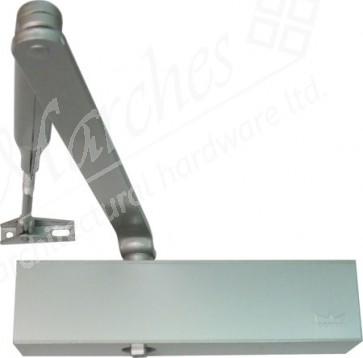

- Surface mounted eccentric rack and pinion door closer with guide rail arm for doors up to 1250 mm with adjustable closing force, back check, hydraulic latching action
- All adjustments on the front of closer
• Features:
- Rack and pinion motion
- Flat form arm
- Closing force adjustable from front (size range EN 2-5, Fig 66 = size range EN 2-4)
- Adjustable self-adjusting backcheck
- Valve adjusting latching speed
• Certification
- Tested and approved to BS EN 1154: 1997
- Tested to conform with CE requirements
- Certifire approved; certificate no. CF 118
• Material:
- Aluminium body. Mild steel arm
- Stainless steel cover*
• A door stop should always be used for non back checked doors, and where practical for back checked doors, and at least 66% of the door width away from the hinge. Alternative would be to fit a T-stop guide rail (see Related Products)
• Fro application figures please see PDF Page
