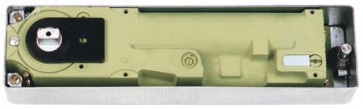

Ts550 Flr Spring Mech And Box En 2-6

• Specifiction:
Floor springs mechanism to suit single and double action doors up to 1250 mm wide with flat-tapered, removable interlocked spindle
Adjustable closing force, adjustable closing speed, check back and variable hold-open, engageable/disengageable 80-120ºSpring opening and operational from 175º. Supplied with cement box
• Features:
- Closing force ajdustable (size range EN 3-6)
- Adjustable closing speed
- Adjustable position within box (6 mm vertical, 10 mm lateral and 10 mm length)
- Backcheck
- Safety valve prevents overloading
- Closing range from 175º
- Suitable for single and double action doors
- Maximum door weight 250 kg
- Delayed action (specific floor spring)
- Cover plate not included (see Related Products)
- Fittings not included (see Related Products)
• Certification
- Tested and approved to BS EN 1154:1997
- Tested to conform to CE requirements
- Certifire approved; certification no. CF259 - Single 30 mins, double 60 mins
• Available to order:
- Weak spring version (EN 1-3), fixed hold-open version (120×-150× in 5× increments, to be specified).
- Standard version with additional latch control, all subject to quantity
