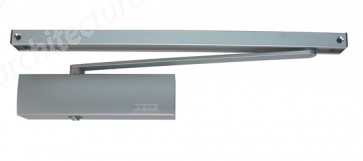

TS 3000 V overhead rack and pinion guide rail door closer

• Specification:
- Surface mounted eccentric rack and pinion door closer with guide rail arm for doors up to 1100 mm with adjustable closing force, hydraulic latching action and eccentric rack and pinion for easier opening
- Valve adjustable latching and closing on the front of closer
• Features:
- Eccentric rack and pinion
- Non projecting guide rail arm
- Closing force adjustable (size range EN 1-4)
- Valve adjustable latching speed
- Valve adjusting closing speed
• Options (shown in Related Products)
- HOld open inset (not for fire doors)
- T-stop guide rail
- Mounting plate
- Mechanical backcheck
- Fig 1 glass clamping plate
- Fig 1 glass mounting plate
• Certification
- Tested and approved to BS EN 1154:1997
- Tested to conform with CE requirements
- Certifire approved; certificate no. CF145 120 mins timber
• Material
- Aluminium body and guide rail. Mild steel arm
- Electro-plated mild steel cover (not suitable for external use)*
• A door stop should always be used for non backchecked doors, and where practical for backchecked doors, and at least 66% of the door width away from the hinge. Alternative would be to fit a T-stop guide rail (shown in Related Products)
• For application figures please see PDF Page
