TS 3000 E Electro-magnectic hold-opn door closer with guide rail arm

• Specification:
- Surface mounted eccentric rack and pinion elctrohydraulic overhead door closer with flat form arm for doors up to 1100 mm wide, with adjustable closing forces, hydraulic latch action
- All adjustments at front for closer
- When voltage applied to closer - door held open
- Voltage off - door will close automatically
- The door may be closed manually at any time regardless of whether the volatge is applied or not
• Features
- Rack and pinion
- Flat form arm
- Closing force adjustable from front (size range EN 1-4)
- Valve adjustable latchign speed
- All adjustments at front of closer
• Electrical data
- Operating voltage 24V DC ± 10%
- Connecting load 100mA
- Max. permissable residual ripple 20%
- Rating 100%
- Enclosure rating IP43
- For interior use only
• For suitable power supply see unit in Related Products
• Connection
- The power supply cable (max. cross section 0.8 mm2) from the fire detection control unit (24V DC) is connected to terminal 'M' in guide rail
• Models

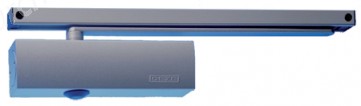

- Standard (Fig 1)
• Certification
- Tested and approved to BS EN 1155:1997
- Tested to conform with CE requirements
- Certifire approved; certificate no. CF252 120 mins
• Material
- Aluminium body
- Mild steel arm
