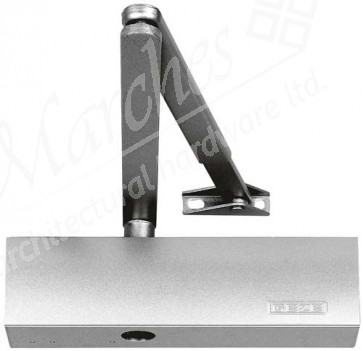

TS 2000 NVBC overhead rack and pinion door closer
Quick Overview
• Specification:
- Surface mounted rack and pinion door closer with flat form arm for doors up to 1250 mm with variable closing force, backcheck and hydraulic latching action
- All adjustments on the front of closer
• Features:
- Rack and pinion
- Flat form arm
- Closing force variable (size range EN 2-4)
- Backcheck with latching action by valve
- Valve adjusting closing speed
• Options (shown in Related Products)
- Hold open arm
- Arch door drop plate
- Fig 1 architrave bracket
- Overpanel bracket
- Mounting plate
- Soffit bracket, frame mounting
- Fig 1 glass clamping plate
• Certification
- Tested and approved to BS EN 1154: 1997
- Tested to conform with CE requirements
- Certifire approved; certificate no. CF252 120 mins timber
• Material:
- Aluminium body. Mild steel arm
- Electro-plated mild steel cover (not suitable for external use)*
• Also available in dark bronze and RAL colours to special order, subject to quantity
• A door stop should always be used for non backchecked doors, and where practical for backchecked doors, and at least 66% of the door width away from the hinge
• For application figures please see PDF Page
