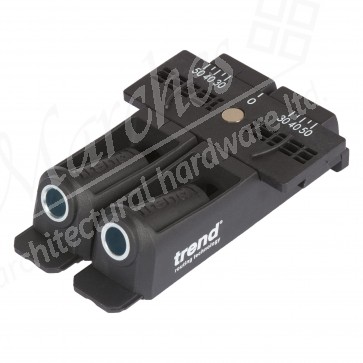

Trend 3-in-1 Pocket Hole Jig

Product Code: 26977

£26.79 (£32.15 inc. VAT) Special Price

Regular Price: £58.71 (£70.45 inc. VAT)

Buy As Trade

Availability: Item stocked in our warehouse

Quick Overview
Minimum material thickness: 12.7mm
Maximum material thickness: 38mm
Hole pitch: 28-50mm
Drilling angle: 15 degrees
Screw size: Fine No. 7 x 30mm, Coarse No. 7 x 25 mm, No.7/8 x 30 mm, No.8 x 37 mm, No.8 x 50 mm, No.8 x 63 mm
Description

Multi-function jig for drilling 9.5mm pocket hole joints suited to both new and repair work. Lightweight glass-fibre reinforced nylon construction with full-length, hardened drill guide bushes. Unique drill depth setting system for fast set-up on materials from 12.7 to 38mm. Adjustable centres are ideal for narrow and wide stock, and detachable drill guides are perfect for narrow repairs in confined spaces.

  • Material Thickness Gauge allows fast checking of material thickness without the use of a tape measure.
  • Pre-set Depth Gauge adjusts the pocket position to suit the timber thickness.
  • Drill Bit Setting Gauge is used to set the correct drilling position for materials between 12.7mm and 38mm thick.
  • Full-Length Hardened Drill Guide Bushes for long life and accurate drilling.
  • Repositionable Drilling Guides allow the hole centres to be altered between 28mm and 50mm ensuring stronger joints in wider material.
  • Woodchip Relief Holes help protect against clogging inside the drilling guides.
  • Flip-Over End Stop allows the jig to hook over for an external joint or butt up to an edge for an internal joint.
  • Pocket Hole Guides can be removed and used as single pocket hole jigs for narrow stock or repairs.
  • Magnetic Clamp Position allows a face clamp to attach to the jig for easier repositioning.
  • Centering Plate Index for setting the drill guides to pre-set positions.
  • Glass Fibre Reinforced Nylon Body minimises weight whilst retaining strength.
