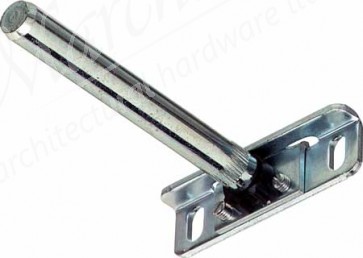

Shelf Support Zi Pl 110mm
£24.55
(£29.46 inc. VAT)
Availability: In Stock
Quick Overview
Support for 24mm shelf thickness
Description
• For concealed mounting of shelves
• For installation into woodwork or masonry walls
• With screw mounting plate
• For 24 mm shelf thickness
• Fitting comprises:
- 1 galvanised steel supporting pin with mounting plate
- 1 pre-mounted plastic sleeve
- 2 adjusting screws for inclination adjustment
• Supporting pin with knurled section is installed in a Ø 12 mm hole in the shelf, the pin may be exposed or concealed depending on the thickness of the shelf
• Height adjustable via slots
• Inclination adjustment using adjusting screws which press on the rear plate when turned in
• Lateral adjustment by lifting the supporting pin; can be adjusted to the right or left
• For installation into woodwork or masonry walls
• With screw mounting plate
• For 24 mm shelf thickness
• Fitting comprises:
- 1 galvanised steel supporting pin with mounting plate
- 1 pre-mounted plastic sleeve
- 2 adjusting screws for inclination adjustment
• Supporting pin with knurled section is installed in a Ø 12 mm hole in the shelf, the pin may be exposed or concealed depending on the thickness of the shelf
• Height adjustable via slots
• Inclination adjustment using adjusting screws which press on the rear plate when turned in
• Lateral adjustment by lifting the supporting pin; can be adjusted to the right or left
Page in catalogue: download page (PDF)
