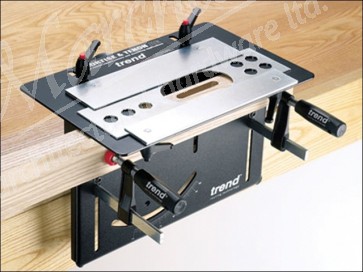

Mortice & Tenon Jig MT/JIG

This jig enables mortise and tenons and dowel joints to be cut with a router, ideal for cabinets, chairs and table joints. There is a one set-up system for both mortise and tenon giving perfectly fitting joints and is fully adjustable for compound angle joints up to 45 degree.

Reversible templates to produce round and square end tenons.
Templates can be used for accurate dowelling applications.
Cuts mortise and tenon sizes of 1/4 inch (6.35 mm) to 5/8 inch (15.9 mm).
Guide bushes are included but cutters are required.
A Unibase may be required for certain makes and models of router.
All tenons are cut with a 5/8 inch diameter straight cutter (Ref. C026).
The width of the tenon is adjusted by using different guide bush diameters.
International PCT Appl N.
CNC precision manufactured plates and body.

Material thickness min: 12 mm.
Material thickness max: 47 mm.
Tenon thickness min: 4.8 mm.
Tenon thickness max: 16 mm.
Angle tilt compound: -10 degree to 45 degrees.
