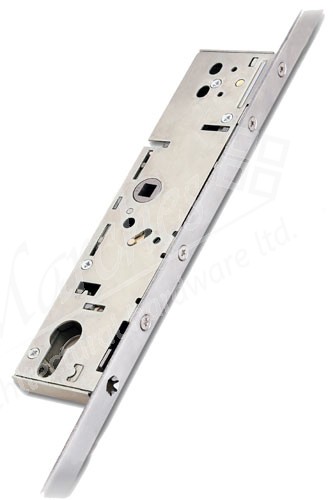

Mortice cylinder slave unit, 92 mm hole centres, 35/45 mm backset
Quick Overview
• Operation: Shoot bolt operated by lever handles. Deadlock by cylinder
• Case: Steel, BZP CR3 passivate, 14.5 mm thick
• Front plate: Square, 1 piece. Steel, BZP CR3 passivate. 2120 mm (including shoot bolts) x 16 mm wide. Front plate can be shortened by max. 130 mm top and bottom
• Keeps: Not included, must be ordered separately
• Follower: 8 mm brass. For use with standard 92 mm unsprung lever handles
• Accepts most europrofile cylinders
• Corrosion resistance: Plated to BS EN 1670 Grade 4
• Designed to meet the requirements of PAS 23 and PAS 24
• Licensed by Secured by Design
• 10 year guarantee
• 35 or 45 mm backset
• Fixings screws are not included
• Order hi-security shoot bolts separately; shown in Related Products
• Order cylinders separately; see Don't Forget to Order
• Order keeps separately; shown in Don't Forget to Order
• Please see PDF Page for dimensions table
• Case: Steel, BZP CR3 passivate, 14.5 mm thick
• Front plate: Square, 1 piece. Steel, BZP CR3 passivate. 2120 mm (including shoot bolts) x 16 mm wide. Front plate can be shortened by max. 130 mm top and bottom
• Keeps: Not included, must be ordered separately
• Follower: 8 mm brass. For use with standard 92 mm unsprung lever handles
• Accepts most europrofile cylinders
• Corrosion resistance: Plated to BS EN 1670 Grade 4
• Designed to meet the requirements of PAS 23 and PAS 24
• Licensed by Secured by Design
• 10 year guarantee
• 35 or 45 mm backset
• Fixings screws are not included
• Order hi-security shoot bolts separately; shown in Related Products
• Order cylinders separately; see Don't Forget to Order
• Order keeps separately; shown in Don't Forget to Order
• Please see PDF Page for dimensions table
