Lid Stay Ni Pl Edg Dis=37mm

• Light version - min. installation depth 130 mm
• Opening angles: 75º, 90º, 110º
• Unhanded design

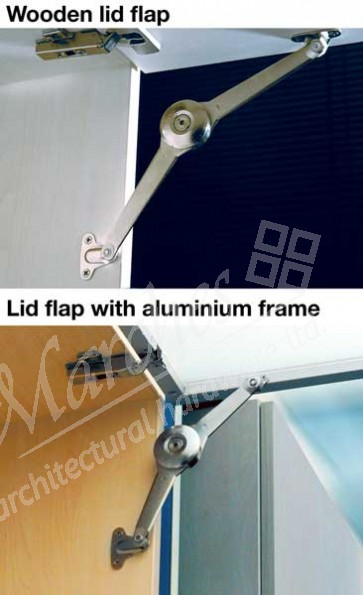

• For use with wooden lids or lids with aluminium frames, also suitable for use as flap stay
• For flaps with aluminium frame with frame width 20 mm of from 45 mm
• With bracking and locking mechanisms, can be adjusted using an SW4 hex key
• Self closing function
• Clip-mounting on pre-mounted screw fixing brackets, no tools required
• Nickel-plated steel bracket
• Nickel-plated zinc alloy lid stay
• Installation instructions included
• Please see PDF Page for details on wooden/aluminium frame fixings

• Adjustment:
Locking mechanism:
- The stay can be adjusted so the cabinet flap locks at any position up to the maximum opening angle
Braking:
- When light pressure is applied to the raised cabinet flap it will automatically close at a rate set by the braking mechanism
