HAWA-Centrefold 80/H fitting set
Quick Overview

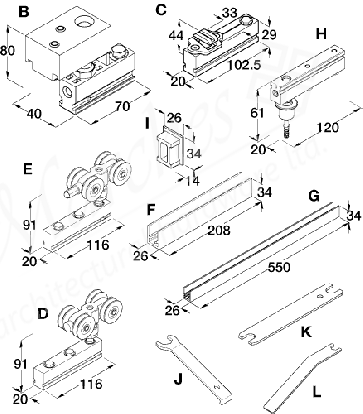

B Top pivot bearing
C Stop with adjustable retainer
D Trolley hanger. M10 plastic-tyred wheels and suspension plate
E Trolley hanger. M10 plastic-tyred wheels and suspension plate and spacer
F Suspension profile 208 mm. Pre drilled for cuntersunk screws. Anodised aluminium
G Suspension profile 550 mm. Pre drilled for cuntersunk screws. Anodised aluminium
H Thrust bearing sleeve, D=20 mm, including driver
I Cover cap, grey rubbr
J Vertical adjustment key
K Suspension assembly locking wrench
L Fork spanner
• Fitting sets
1 Basic set with pivot bearing and guide
2 Additional set with guide
3 Pivot door set to folded stack, without trolley and top pivot bearing
4 Pivot door set for installation without bottom guide channel
• Please see PDF Page for set contents
