HAWA- Bifold 30 Set 2 Dr Fold Set

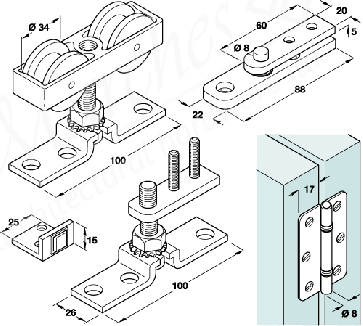

• Bifold 30 fitting set, excluding track, channel, for 2 doors comprises:
Trolley hanger (1 pc)
- Non-corrosive aluminium housing with twin high quality rollers. Zinc-plated mounting brackets with M10 pendant bolt
Upper pivot hinge (1 pc)
- Aluminium support plate with 2 hex screws, 6 x 35 mm to fasten into top track. height and side adjustable, ± 2 mm, mounting bracket with steel M10 pivot bolt
Lower pivot hinge (1 pc)
- Aluminium door mounting plate. adjustable, ± 2 mm, aluminium floor mounting plate with steel M8 pivot bolt
Butt hinge (3 pcs)
- Galvanised steel with plastic bearings. For light duty applications only: This light duty hinge is included but we strongly recommend ordering one of the hinges shown in System Parts for heavier duty applications
Stop bracket (1 pc)
- Galvanised steel with rubber buffer
