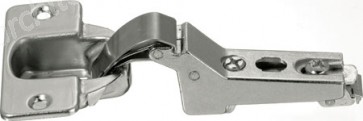

Grass standard 95º hinge, ø 40 mm cup, screw fixing, click on arms, sprung
Quick Overview
• Opening angle 95º
• 0 mm, 8 mm or 15 mm crank
• Sprung
• Ø 40 mm cup
• Click on arms
• The Ø 40 cup makes this an excellent choice for doors up to 38 mm thickness
• Cup: Nickel-plated pressed steel
- Arm: Nickel-plated zinc alloy
• Mounting plates are not included, please see Don't Forget to Order
• For illustrations, dimensions and instructions on how to choose the correct mounting plate, please see PDF Page
• Please note: If using item 322.13.630 with Accuride 1234 pivor sliding door runners, there is a maximum overlay of 11 mm
