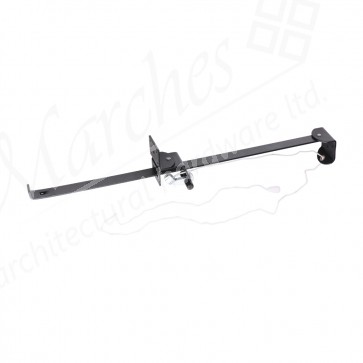

Garage Stay/Holder 24" (Narrow Lintel)
£24.03
(£28.84 inc. VAT)
Availability: Item stocked in our warehouse
Quick Overview

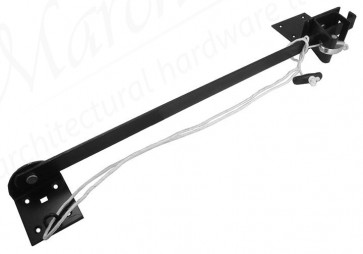

Size: Overall Length: 600mm Senior reliance door holder in black finish for narrow lintels (lintel bracket mounts on side of lintel). Designed to hold a garage door open at approximately 90 degrees.
Description
Sold as a single item with all fixing screws, bolts and instructions. To fit this unit the door is first opened to right angles.
A bracket is fitted to the lintel at a distance of 430mm(17in) from the centre of the door hinge pin to the centre of the lintel bracket. Lintels with a width of approximately 95mm or more can use the wide lintel version (bracket will mount on the bottom instead of the side in the wide version).
Whilst the door is open at right angles the other bracket is fitted to the door with the bar horizontal.
It is possible to open the door wider than 90 degrees by moving both brackets nearer the hinge.
