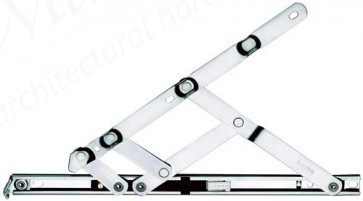

Friction Hinge Restrictr 509mm
£28.17
(£33.80 inc. VAT)
Availability: In Stock
Quick Overview
Top hung windows, length = 509 mm (20"), max vent width = 1000 mm, max vent height = 1000 mm, max vent weight = 24 kg, opening angle = 52º
Description
• Available for side and top hung windows
• Mechanism that restricts the initial window opening to 100 mm
• Complies with BS 8213 Part 1: 1991 ‘Code of Practice for Safety in use and in cleaning’
• Designed to be unobtrusive, the opening catch is less tempting to children
• The mechanism requires a certain level of strength and dexterity to operate and two hands are required to co-ordinate opening, giving added protection.
• The entire restrictor mechanism is integral to the hinge, eliminating the need for a separate restrictor
• Windows Incorporating the restrictor hinge have been tested and meet the requirements of BS 6375, Part 2: 1987, Clause A7 Test 6, ‘Strength of Restricted Opening, Location Devices and Maximum Opening Stops’
• Range of two sizes of each side hung and top hung available
• Stay parts: Ferritic stainless steel grade 430
• Friction slide: Glass-filled nylon
• Adjustment screws: Brass
• Mechanism that restricts the initial window opening to 100 mm
• Complies with BS 8213 Part 1: 1991 ‘Code of Practice for Safety in use and in cleaning’
• Designed to be unobtrusive, the opening catch is less tempting to children
• The mechanism requires a certain level of strength and dexterity to operate and two hands are required to co-ordinate opening, giving added protection.
• The entire restrictor mechanism is integral to the hinge, eliminating the need for a separate restrictor
• Windows Incorporating the restrictor hinge have been tested and meet the requirements of BS 6375, Part 2: 1987, Clause A7 Test 6, ‘Strength of Restricted Opening, Location Devices and Maximum Opening Stops’
• Range of two sizes of each side hung and top hung available
• Stay parts: Ferritic stainless steel grade 430
• Friction slide: Glass-filled nylon
• Adjustment screws: Brass
Page in catalogue: download page (PDF)
Product Variations:
|
Friction Hinge Restrictr 609mm | Product Code: 91159127 |
£30.62
(£36.74 inc. VAT)
In Stock |
|
|
|
Friction Hinge Restrictr 305mm | Product Code: 91159128 |
£22.60
(£27.12 inc. VAT)
In Stock |
|
|
|
Friction Hinge Restrictr 406mm | Product Code: 91159129 |
£24.66
(£29.59 inc. VAT)
In Stock |
|
