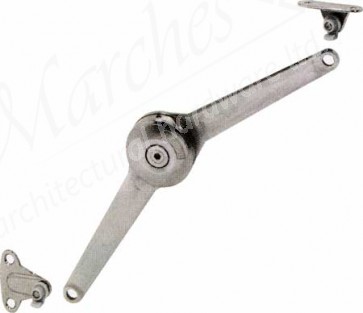

Flap Stay Nickel Plated 37mm
£15.68
(£18.82 inc. VAT)
Availability: In Stock
Quick Overview
For lids with aluminium frame width 20 mm, 37 mm dist from edge
Description
• Heavy version: min. installation depth 175 mm
• Opening angle: 75º, 90º, 110º
• Unhanded design
• For use with wooden lids or lids with aluminium frames, also suitable for use as flap stay
• For flaps with aluminium frame with frame width 20 mm or from 45 mm
• With braking and locking mechanisms, can be adjusted using SW4 hex key
• Self closing function
• Clip-mounting on pre-mounted screw fixing brackets, no tools required
• Nickel-plated steel bracket
• Nickel-plated zinc alloy lid stay
• Installation instructions included
• Adjustment:
Locking mechanism:
- The stay can be adjusted so the cabinet flap locks at any position up to the maximum opening angle
Braking:
- When light pressure is applied to the raised cabinet flap it will automatically close at a rate set by the braking mechanism
• Opening angle: 75º, 90º, 110º
• Unhanded design
• For use with wooden lids or lids with aluminium frames, also suitable for use as flap stay
• For flaps with aluminium frame with frame width 20 mm or from 45 mm
• With braking and locking mechanisms, can be adjusted using SW4 hex key
• Self closing function
• Clip-mounting on pre-mounted screw fixing brackets, no tools required
• Nickel-plated steel bracket
• Nickel-plated zinc alloy lid stay
• Installation instructions included
• Adjustment:
Locking mechanism:
- The stay can be adjusted so the cabinet flap locks at any position up to the maximum opening angle
Braking:
- When light pressure is applied to the raised cabinet flap it will automatically close at a rate set by the braking mechanism
Page in catalogue: download page (PDF)
Product Variations:
|
Flap Stay Nickel Plated 28mm | Product Code: 37366631 |
£15.56
(£18.67 inc. VAT)
In Stock |
|
|
|
Flap Stay Nickel Plated 37mm | Product Code: 37366632 |
£15.88
(£19.06 inc. VAT)
In Stock |
|
