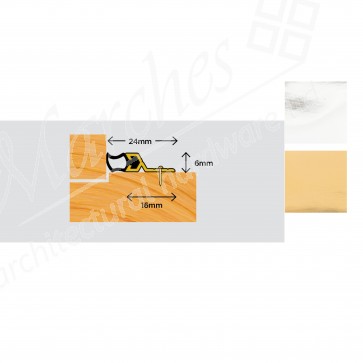

Exitex STD Door Surround - Various Finishes

Fitting Instructions: The door should be in the closed position. Remove rubber seals from aluminium sections. Measure and cut the short piece of aluminium to fit across the top of the door frame. Use a fine tooth hacksaw, cut at an angle to give a 45 degree mitre. Cut rubber seal to length and insert into aluminium. Nail or screw into position. Measure from fitted top strip to door bottom, and cut the side pieces to the length required. Use a fine tooth hacksaw, cut at an angle to give a 45 degree mitre. Important leave sealing blade 12mm (1/2") longer. Using a pair of pliers nip the bottom of the gasket retaining channel to keep the seal in place after insertion. Place the side sections against the door and nail or screw into position. IMPORTANT If screw fixing is provided, "Posi" slotted type screws are supplied for safe and easy installation, use a No.1 screwdriver. On hardwood frames first make a pilot hole with a bradawl or small drill, in the centre of the slots.
