Exitex MWK Mobility Weatherbar Kit 20 1220mm - Gold

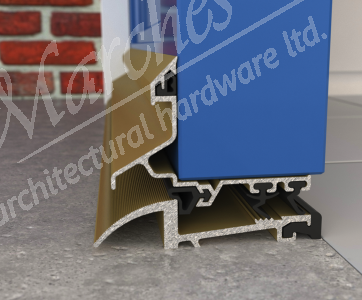

Fitting Instructions: Threshold Section Check width between inside faces of the doorframe rebate and cut aluminium section to this size. (See Illustration) Notch the front ramped section as below. (See Illustration) This sill requires an under door clearance of 20mm. If necessary, remove door and trim to allow for this. Position the assembled sill between the doorframe and mark fixing points through countersunk holes. Remove sill, drill fixing holes and insert plugs. Apply sealing compound to underside groove at front of sill and where sill makes contact with doorframe and screw into place Upper Section Remove rubber seals from aluminium section and cut the aluminium to the door width. With door closed measure between exterior doorframe rebate less 6mm for deflector end caps. Notch the front section to this dimension as illustrated. Notches at both ends need to be equal. Refit rubber seals leave them extending by 3mm on each side. Nip the three groove ends of the seal carrier at the lock side to avoid them sliding out. Install end caps to each side of the deflector and screw into position on the door.
