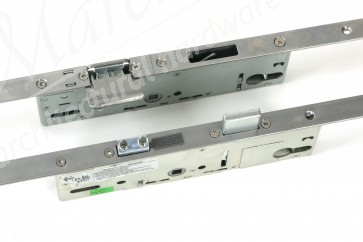

Era French Door Linear Lock Set 1815-2100mm door height, 45mm B/Set (20mm FP)
Quick Overview
For doors: 1815mm up to 2880mm (Please choose correct kit accordingly).
• If door size is 2300 - 2670mm please also order kit 20771, x1 of item 20775/4 & x1 of item 20775/5
• If door size is 2450 - 2880mm please also order kit 20773, x1 of item 20775/4 & x1 of item 20775/5
• Kit Includes: Master Lock (20775), Slave Lock (20775/1), x4 Shoot bolts (Either 20775/2 or 20775/3) and x2 Shoot bolt keeps (20795).
• 45mm backset with a 20mm wide faceplate. See diagram for dimensions.
• 20771 kit is an ideal solution for short doors. A 1870mm minimum door height can be achieved with a handle height of 1050mm. Shorter doors can also be achieved but this would reduce the handle height.
• Also known as Viper or Ventas.
• If door size is 2300 - 2670mm please also order kit 20771, x1 of item 20775/4 & x1 of item 20775/5
• If door size is 2450 - 2880mm please also order kit 20773, x1 of item 20775/4 & x1 of item 20775/5
• Kit Includes: Master Lock (20775), Slave Lock (20775/1), x4 Shoot bolts (Either 20775/2 or 20775/3) and x2 Shoot bolt keeps (20795).
• 45mm backset with a 20mm wide faceplate. See diagram for dimensions.
• 20771 kit is an ideal solution for short doors. A 1870mm minimum door height can be achieved with a handle height of 1050mm. Shorter doors can also be achieved but this would reduce the handle height.
• Also known as Viper or Ventas.
Description
Non-handed locking mechanism with easily reversible centre latch to minimise stock requirements. Snib facility as standard on all locks.
Twin linear tapered bolts with an 18mm throw, lock into steel keeps offering resistance to forced entry.
Accepts standard 92mm handles and europrofile cylinders.
Tested to the latest security and performance standards the 2 Linear Bolt lock meets the requirements of PAS 24:2012. The lock meets the requirements of BS EN 1670:2007 Grade 4 (240 hours) for Corrosion Resistance to provide the most robust finish and has also been performance tested in our to 50,000 cycles.
Comes with a 10 year mechanical guarantee.
