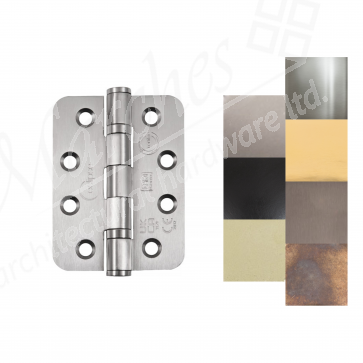

Eclipse 4" Fire Rated Ball Bearing Butt Hinge (Pair) - Various Finishes
Quick Overview
Dimensions:
Height - 102mm
Width - 76mm
Thickness - 3mm
Radius - 10mm
Various Finishes
CE 2812, UKCA 1121, Certifire CF336
Complies with BS EN1935, tested for 200,000 cycles to grade 13 (up to 120kg doors)
BS EN1634 fire tested, FD30, FD60, FD90, FD120 timber doors and FD240 steel doors
12 gauge countersunk
Supplied with 12 x 1 1/2" Pozi Drive 3/4" threaded screws
Grade 201 Stainless Steel
Height - 102mm
Width - 76mm
Thickness - 3mm
Radius - 10mm
Various Finishes
CE 2812, UKCA 1121, Certifire CF336
Complies with BS EN1935, tested for 200,000 cycles to grade 13 (up to 120kg doors)
BS EN1634 fire tested, FD30, FD60, FD90, FD120 timber doors and FD240 steel doors
12 gauge countersunk
Supplied with 12 x 1 1/2" Pozi Drive 3/4" threaded screws
Grade 201 Stainless Steel
Description
This is a BS Grade 13, extra heavy weight radius ball bearing hinge (120kg per pair). It is CE rated and has been passed by Certifire. This high performance hinge incorporates a bearing system which is durable and reliable.
Sold in pairs with screws.
