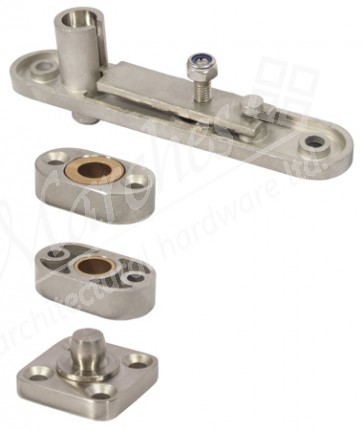

Double Action Pivot Set

• Allows door to swing in either direction
• Door plates radiused for easy preparation
• Bottom bracket is floor mounted and does not protrude beyond the door edge
• Suitable for FD30 doors, tested to BS476 Part 22
• Minimum door thickness 44 mm
• To suit doors up to 80 kg
• Maximum door width 1100 mm
• Top and bottom plates have maintenance free oil impregnated bronze bearings
• 44 mm thick doors require R9 radius on pivot edge, 54 mm thick doors require R12 radius
• Set includes door bottom pivot, top centre and Ø 5 mm door brackets
• Maintenance free, guaranteed 25 years
• Note: It is recommended that both lock and hinge stiles are brush stripped for privacy. See Related Products
• Stainless steel, grade 304
• Heavy duty (120 kg) and adjustable pivot version available to order, subject to quantity
