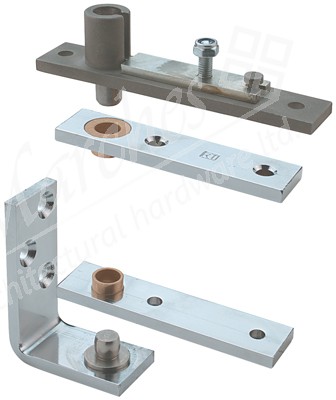

Double Action Pivot Set St/st

• Allows doors to swing in either dirction
• Door plates radiused for easy preperation
• Bottom bracket is frame mounted
• Minimum door thickness 44 mm
• To suit doors up to 80 kg, when bracket floor mounted
• maximum door width 1100 mm, when jamb mounted
• 44 mm thick doors require R9 radius on pivot edge, 54 mm thick doors require R12 radius
• Top and bottom plates have maintenance free oil impregnated bronze bearings
• Set includes door bottom pivot, top centre and Ø 5 mm door brackets
• Maintenance free, guaranteed 25 years
• Note: It is recommended that both lock and hinge stiles are brush stripped for privacy. See Related Products
• Stainless steel, grade 304
• Adjustable pivot version available to order, subject to quantity
