Concealed Cabinet Zi St Pl
£2.78
(£3.34 inc. VAT)
Availability: In Stock
Quick Overview

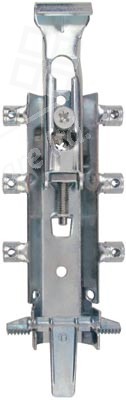

Concealed cabinet hanger
Description
• Unhanded
• Cabinet hanger concealed behind rear panel, only cover cap visable inside the cabinet
• Slots into side cabinet by making 4 face boring and secured in position by rotating 180º the locking pin with ridges
• A 3.5 x 20 mm lateral wood screw secures permanently the cabinet hanger in place (not provided)
• Vertical adjustments through front gear cross socket interconnected to the vertical bolt, which reduces the cabinet adjustment effort
• Vertical adjustment: from 0 to 18 mm
• Horizontal adjustment: from 11 to 17 mm
• Load carrying capacity: 130 kilos per pair
• Zinc-plated steel
• Cabinet hanger concealed behind rear panel, only cover cap visable inside the cabinet
• Slots into side cabinet by making 4 face boring and secured in position by rotating 180º the locking pin with ridges
• A 3.5 x 20 mm lateral wood screw secures permanently the cabinet hanger in place (not provided)
• Vertical adjustments through front gear cross socket interconnected to the vertical bolt, which reduces the cabinet adjustment effort
• Vertical adjustment: from 0 to 18 mm
• Horizontal adjustment: from 11 to 17 mm
• Load carrying capacity: 130 kilos per pair
• Zinc-plated steel
Page in catalogue: download page (PDF)
