Central Locking Device Nkl Pl

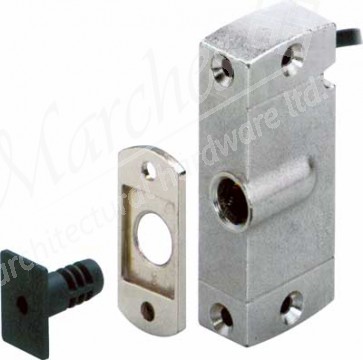

• Comprises:
- 1 Lock case, nickel-plated zinc alloy
- 1 Fixing plate, nickel-plated zinc alloy
- 1 Locking bolt, grey plastic
- 1 AMP plug connector
- 1 Connecting cable, 1 or 5 m length
Refer to Don't Forget to Order for additional items to be used with the CL lock case
• Application:
For use in furniture and office equipment, such as roller shutters, revolving doors, flaps and drawers
For door widths:
- min. 450 mm for overlay doors
- min. 240 mm for inset doors
• Operation:
Electro-mechanical lock.
Locking bolt is floating to compensate for any tolerances
• Technical data:
Power supply:12 V DC (Direct Current)
Continuous current consumption: 50 mA
Tensile load: 200 N (acc. to DIN 68 852)
Fail locked
• Monitored version:
Contact rating, 5V 10ma maximum
