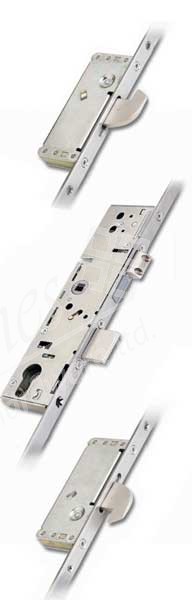

45mm Backset 16mm Face Plate 1818mm
£111.74
(£134.09 inc. VAT)
Availability: In Stock
Quick Overview
Front plate (L x W): 2250 mm x 16 mm, Backset 45 mm
Description
• Operation: Latchbolt operated by lever handles. Deadbolt and hooks operated by lifting lever and the deadlocking by cylinder
• Cases: Steel, BZP CR3 passivate, 14.5 mm thick
• Front plate: Square, 1 piece. Steel, BZP CR3 passivate 2100/2250 mm x 16/20 mm wide
• Keeps: Not included, must be ordered separately
• Latchbolt: Brass, satin chrome plated. Reversible
• Deadbolt: Brass, satin chrome plated. 22 mm throw
• Hookbolts: Forged brass, satin chrome plated. 28 mm overall throw
• Follower: 8 mm brass. For use with standard 92 mm unsprung lever handles
• Accepts most europrofile cylinders
• Not suitable for rebated doors
• Designed to meet the requirements of PAS 23 and PAS 24
• Licensed by Secured by Design
• 10 year guarantee
• 45 mm backset
• Fixing screws are not included
• Optional shoot bolt engagement for additional security available, shown in Related Products
• Order cylinders separately; see Related Products
• Order keeps separately; see Don't Forget to Order
• For lever handles see Related Products
• Please see PDF Page for full dimensions
• Cases: Steel, BZP CR3 passivate, 14.5 mm thick
• Front plate: Square, 1 piece. Steel, BZP CR3 passivate 2100/2250 mm x 16/20 mm wide
• Keeps: Not included, must be ordered separately
• Latchbolt: Brass, satin chrome plated. Reversible
• Deadbolt: Brass, satin chrome plated. 22 mm throw
• Hookbolts: Forged brass, satin chrome plated. 28 mm overall throw
• Follower: 8 mm brass. For use with standard 92 mm unsprung lever handles
• Accepts most europrofile cylinders
• Not suitable for rebated doors
• Designed to meet the requirements of PAS 23 and PAS 24
• Licensed by Secured by Design
• 10 year guarantee
• 45 mm backset
• Fixing screws are not included
• Optional shoot bolt engagement for additional security available, shown in Related Products
• Order cylinders separately; see Related Products
• Order keeps separately; see Don't Forget to Order
• For lever handles see Related Products
• Please see PDF Page for full dimensions
Product Variations:
|
Mpl 45mm Backset 16mm Face Plate 2100mm | Product Code: 91150782 |
£111.69
(£134.03 inc. VAT)
In Stock |
|
|
|
MPL 45mm Backset 20mm Face Plate 2100mm | Product Code: 91150783 |
£111.69
(£134.03 inc. VAT)
In Stock |
|
|
|
Mpl 45mm Backset 16mm Face Plate 2250mm | Product Code: 91150784 |
£111.69
(£134.03 inc. VAT)
In Stock |
|
|
|
Mpl 45mm Backset 20mm Face Plate 2250mm | Product Code: 91150785 |
£111.69
(£134.03 inc. VAT)
In Stock |
|
