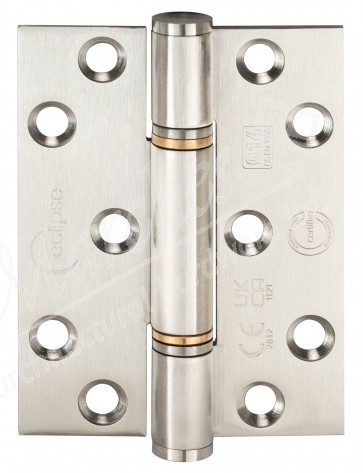

4" Thrust Bearing Hinge (Pair) - Grade 201 SSS
£16.10
(£19.32 inc. VAT)
- Buy 5 for £12.08 (£14.49 incl. tax) each and save 26%
- Buy 10 for £11.27 (£13.52 incl. tax) each and save 31%
- Buy 25 for £10.47 (£12.56 incl. tax) each and save 36%
- Buy 50 for £9.66 (£11.59 incl. tax) each and save 40%
Availability: Special Order 2-3 Days
Quick Overview
Dimensions:
H x W x T - 102mm x 76mm x 3mm
Finish - Grade 201 Satin Stainless Steel
Features:
• Suitable for external joinery
• Maintenance-free / self-lubricating
• BS EN1634 fire tested FD30, FD60, FD90 and FD120 on timber
• BS EN1634 fire tested FD240 on steel
• Grade 14 for doors up to 160kg / BS EN1935 tested to 200,000 cycles
• 160kg with 1.5 Pairs
• CE 2812, UKCA 1121, Certifire CF336
• 12 gauge countersunk
• Supplied with 12 x 1 1/2" Pozi Drive 3/4" threaded screws
Frisco - 14929
H x W x T - 102mm x 76mm x 3mm
Finish - Grade 201 Satin Stainless Steel
Features:
• Suitable for external joinery
• Maintenance-free / self-lubricating
• BS EN1634 fire tested FD30, FD60, FD90 and FD120 on timber
• BS EN1634 fire tested FD240 on steel
• Grade 14 for doors up to 160kg / BS EN1935 tested to 200,000 cycles
• 160kg with 1.5 Pairs
• CE 2812, UKCA 1121, Certifire CF336
• 12 gauge countersunk
• Supplied with 12 x 1 1/2" Pozi Drive 3/4" threaded screws
Frisco - 14929
Description
This is a high quality grade 201 stainless steel thrust bearing hinge, recommended for use with external applications. The hinge incorporates thrust bearings as well as phosphor bronze washers, rather than ball bearings, making it self-lubricating and maintenance-free.
The hinge complies with BS EN 1935 Grade 14 and is suitable for doors up to 160kg (with 3 hinges) as well as being tested to 200,000 cycles. The hinge is also tested to BS EN 1634 and is fire tested to FD120 on timber and FD240 on steel application. It Also complies with Certifire CF336 and is CE marked.
Sold in pairs with screws.
