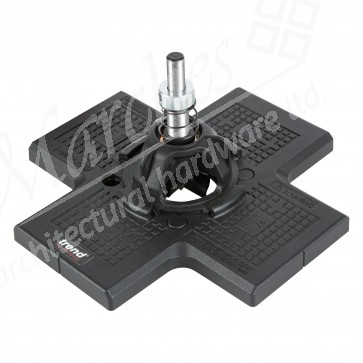

Trend CAB/JIG/B 35mm Concealed Cabinet Hinge Jig

A precision drilling jig for installing concealed cabinet (‘euro-style’) hinges accurately and quickly.

Features tool-free inset positioning for rapid setup and pilot hole guides to ensure perfect hinge alignment.

For use with a standard Combi Drill.

Includes 35mm TCT machine bit. 3, 4, 5, & 6mm Hinge Inset Positions quickly sets the correct distance from the edge of the door.

In-built Depth Stop to prevent over-drilling.

Pilot Hole Plate ensures hinges are mounted perfectly square.

Pin Guide System minimises setup time & guarantees positional accuracy.

Glass Fibre Reinforced Nylon Body minimises weight whilst retaining strength.

Spring-Loaded Drill Guide prevents machine bit from damaging door surfaces.

Large Clamping Area to secure the jig during use.

Includes 35mm TCT Machine Bit with cutting spurs for a cleaner finished edge, especially in man-made materials such as MFC and MDF.
